CR-B Series Hydraulic Rotator

Name: Hydraulic Grapple Rotator With Grapple Rotator Motor For Material Handling
Availability: InStock
Rating: 4.5 (89 reviews)

Short Description:

The hydraulic grapple rotator is designed to ensure 360° rotation and smooth operation of log grapples, stone grapples, and other hydraulic attachments. It combines high torque, excellent sealing performance, and low maintenance requirements. Suitable for excavators and cranes, this rotator enhances the efficiency and precision of material handling. Whether in forestry, recycling, or construction sites, it offers outstanding reliability and operational stability.

Send Email

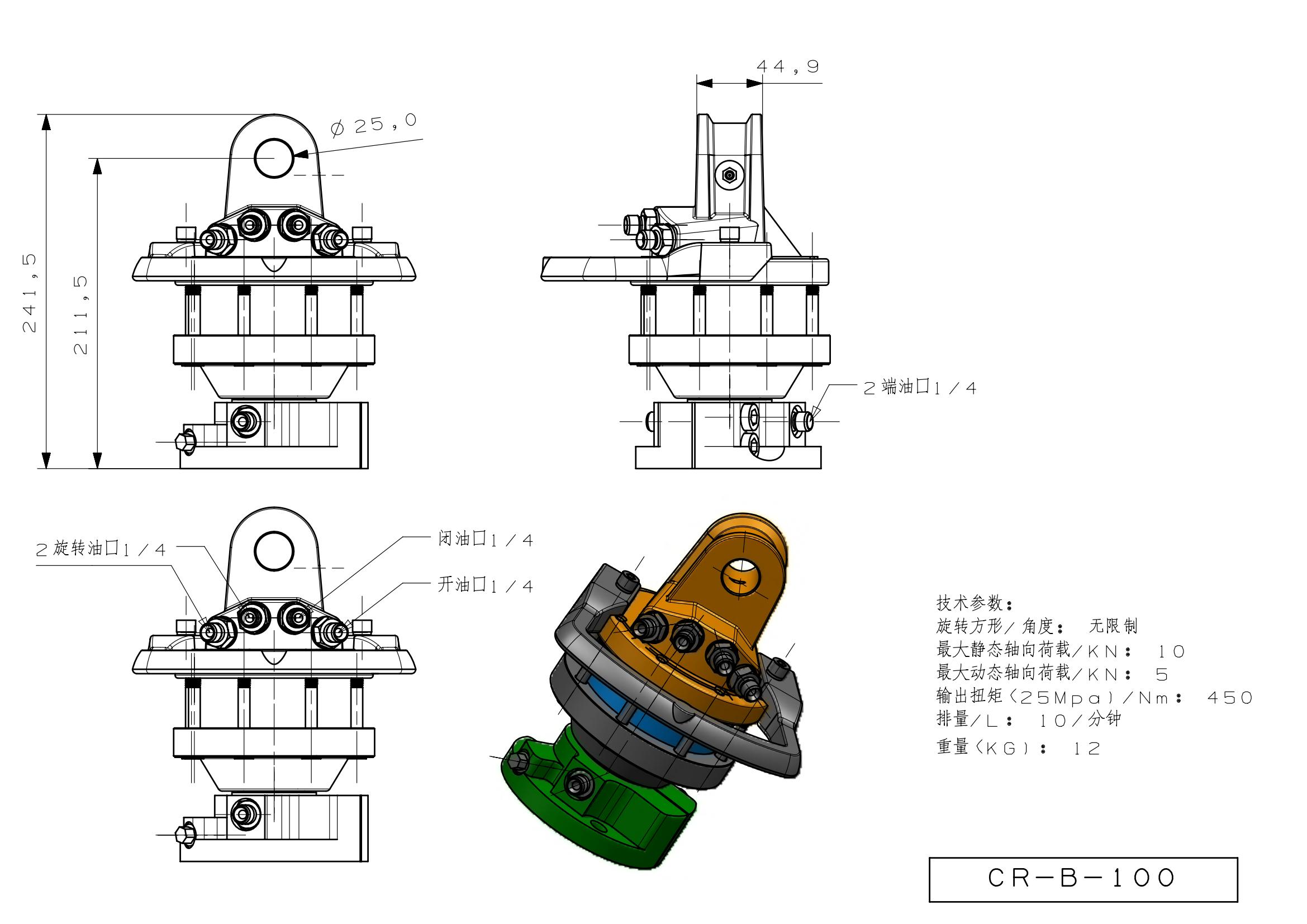

CR-B-100_00

CR-B Serials
Technical specifications	Rotation angle	unlimited°
	Max rotation pressure(R)	250 bar
	Max working pressure grapple open(GO)	200-300 bar
	Max working pressure grapple closed (GC)	300 bar
	Capacity	193-810 cm³
	Torque(250 bar)	450-2700 Nm
	Max axial load (static)	10-100 kN
	Max axial load (dynamic)	5-50 kN
	Weight	12-56 kg
	Connections	G1/4″-G1/2″
	Connectors	BSP1/4″ JIC3/4-16
	Stud bolts	M8-M12
	Stud bolts tightening torque	40-125 Nm
	Maximum oil flow	10-25 lpm
